Drum Mixer Concrete Truck 16cbm , Concrete Transport Truck With Imported Pump

Brand Name : SINOTRUK

Model Number : ZZ1167N4617N

Certification : ISO/CCC/SGS

Place of Origin : China

MOQ : 1pcs

Price : $45000-70000

Payment Terms : T/T or western Union

Supply Ability : 3,000pcs per month

Delivery Time : 20 working days after received your payment

Packaging Details : Nude

Product Name : Concrete Mixer Truck

Mixing Capacity : 8-16cbm

Drive Type : 6X4,8X4

Model : ZZ1167N4617N

Engine : 290hp,336hp,371hp

Emission Standard : EURO 2

Standard : ISO/CCC/SGS

Mixer Pump Brand : Eton

Steering : Zf8098

Front Axle : HF9

Rear Axles : HC16

Contact Now

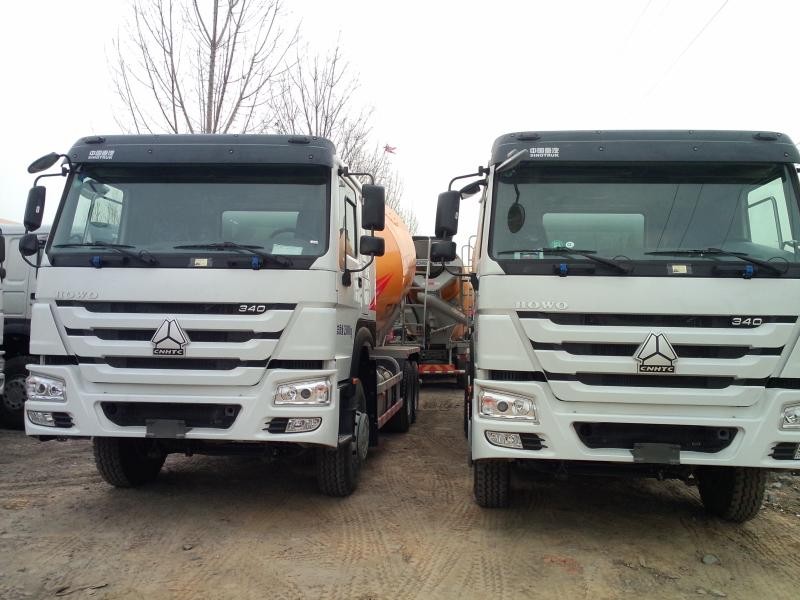

HOWO Drum mixer concrete truck 16cbm , Concrete transport Truck with Imported pump

Specifications:

machine parameter	name	unit	parameter
			16m³(HOWO-8*4 chassis)
	model		HDT5313GJB
	Total Length	mm	10850
	Total Width	mm	2496
	Total Height	mm	3980
	Chassis Model		HOWO-ZZ1317N3667C1
	Overall Weight(standard code)	Kg	31000
	Curb Weight	Kg	16600
	Wheel Base	mm	1800+3600+1350
	Front Tread	mm	2022
	Rear Tread	mm	1830
	Front Overhang	mm	1500
	rear Overhang	mm	2600
	Min. Turning Radius	m	11.5
	Max. Traveling Speed	Km/h	90
	Steering Device(GERMANY )		ZF8098( GERMANY )
	Transmission		HW18709
engine	Oil Consumption per 100 km(under limited conditions) /100km	L	≤31
	Engine Model		WD615.95, WD615.96, WD615.95E, WD615.96E
	engine configuration		Water-cooled six-cylinder diesel engine Turbocharged Electronic Fuel Injection
	Engine max. output power	KW	247KW(2200R/Min);276KW(2200R/Min)
	Max. Engine Torque	N.m	1350;1500
	Max. PTO torque	N.m	600(1100-1400r/min)
	discharge standard		state 3 Europe 3
working device	Mixing Drum Volume	M³	24.1M³
	transport mixing volume	M³	16
	agitator rotation angle	°	10°
	agitator rotation speed	r/min	0-14
	feed speed	M³/min	≥3.5
	discharge speed	M³/min	≥1.5
	landside degree	mm	100~230
	surplus rate	%	nearly zero
	water tank volume	L	260
	Max. mixing drum diameter	mm	φ2412mm
	supply water mode		air-pressure supply water or electric water pump

Functions of the parts atop the chassis are as follows.
1. Loading
The ability to feed the concrete into the mixing drum
2. Mixing
The ability to prevent the concrete condensing or segregating during transport or waiting for unloading
3. Transport
The ability to transport the concrete from the mixing station to the construction site
4. Unloading
The ability to discharge the concrete
5. Cleaning
The ability to clean the mixing drum
Since the concrete has adhesive force, it will certainly adhere to the parts that are in contact with it, such as the feed port, tank wall, mixing blades, discharge port, etc. To prevent too much concrete attaching affecting the performance of the vehicle, it is necessary to clean the residual concrete that attaches to the tank and other parts.

Notes for New Vehicle Run-in
1. The run-in distance is set to be 2500 km. Before running in, conduct a routine check of the concrete mixer truck to ensure that the vehicle is in normal working condition.
2. After starting the engine, do not accelerate immediately. Wait for 3 to 5 minutes. After the normal operating temperature is reached, you can increase the engine speed.
3. It is strictly prohibited to shut down the engine in the state of warming car. You have to wait for 3 to 5 minutes before shutdown.
4. During the run-in period, the vehicle should run on flat roads.
5. You should shift the gears timely. Smoothly engage the clutch. Avoid sudden acceleration and emergency braking.
6. Before going up the slope, shift into the low speed level. But note that do not let the engine work at very low speeds.
7. In the first 3000km driving distance of the new vehicle, the vehicle load should not exceed 70% of the rated load. The lubrication and maintenance cycle should be shortened in the break-in period. Drum Mixer Concrete Truck 16cbm , Concrete Transport Truck With Imported Pump
